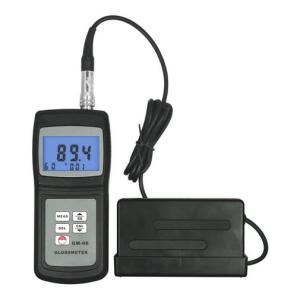

Capacity Memory Rechargeable Battery 60°Gloss Meter for Quality Control of Paint and Ink
Brief Introduction:
Gloss meter was widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement.
Features:
1, In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
2, Accurate measurement, good repetitiveness.
3, Small in size, easy to carry.
4, Auto calibration.
5, Intelligent design, rapid measurement.
6, Able to store 254 groups of measurements.
7, Built-in lithium ion rechargeable battery.
8, Backlight display, suitable for low light environment.
9, Use USB/RS-232 data output to connect with PC.
10, Provide Bluetooth data output choice.
Material And Angle Selection Recommended:
20°: High gloss paint, printing ink, plastics, paper and other materials.
60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
85°: Low gloss paint, camouflage coatings materials.
Technical Specifications:
| Display |
4 Digits Backlit LCD |
| Measuring Angle |
60º |
| Range |
0.1~200 Gloss Units |
| Gloss Units |
GU |
| Accuracy |
±1.0GU |
| Resoltuion |
0.1 |
| Repeatability |
±0.5GU |
| Measuring Area |
7x14mm(Ellipse) |
| Data Memorized |
254 Groups |
| Operating Conditions |
Temp:0~40ºC Humidity:<85%RH |
| Power Supply |
4x1.5V AAA Size(UM-4)Battery |
| Dimensions |
Main Unit:156x67x28mm |
| Probe:58x28x108mm |
| Weight |
190g(Not Including Batteries) |
| Stabdard Accessories |
Main Unit |
| Holder with Calibration Standard |
| External Probe |
| Optical Cleaning Cloth |
| Carrying Case(B04) |
| Operation Manual |
Product Tags:
|
|
Measuring Angle 60° Gloss Meter for Quality Control of Paint and Ink with Rechargeable Battery Images
|
